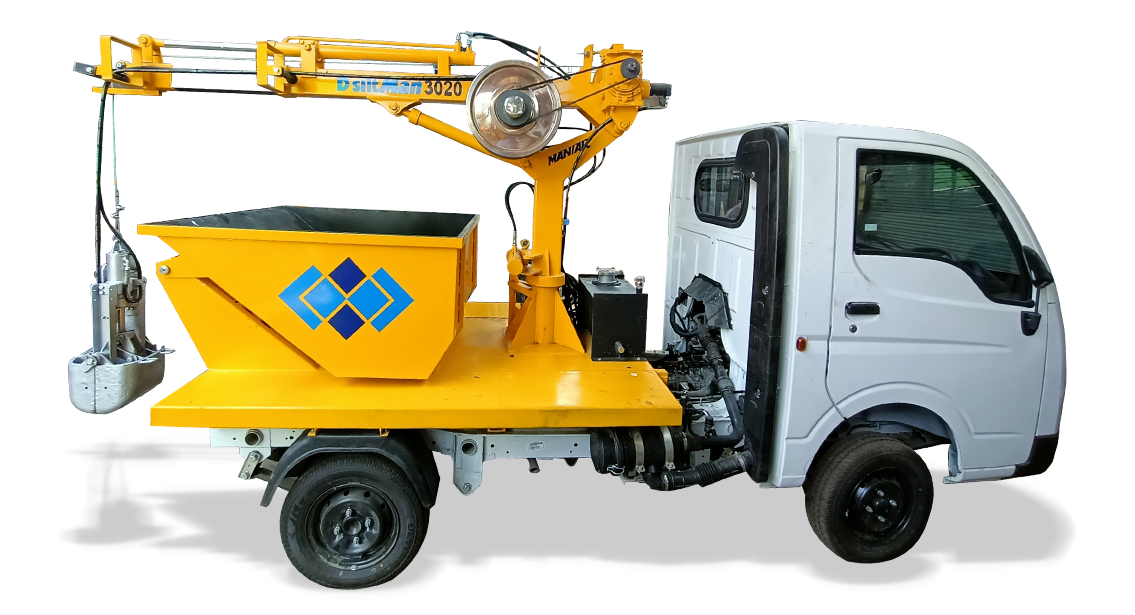

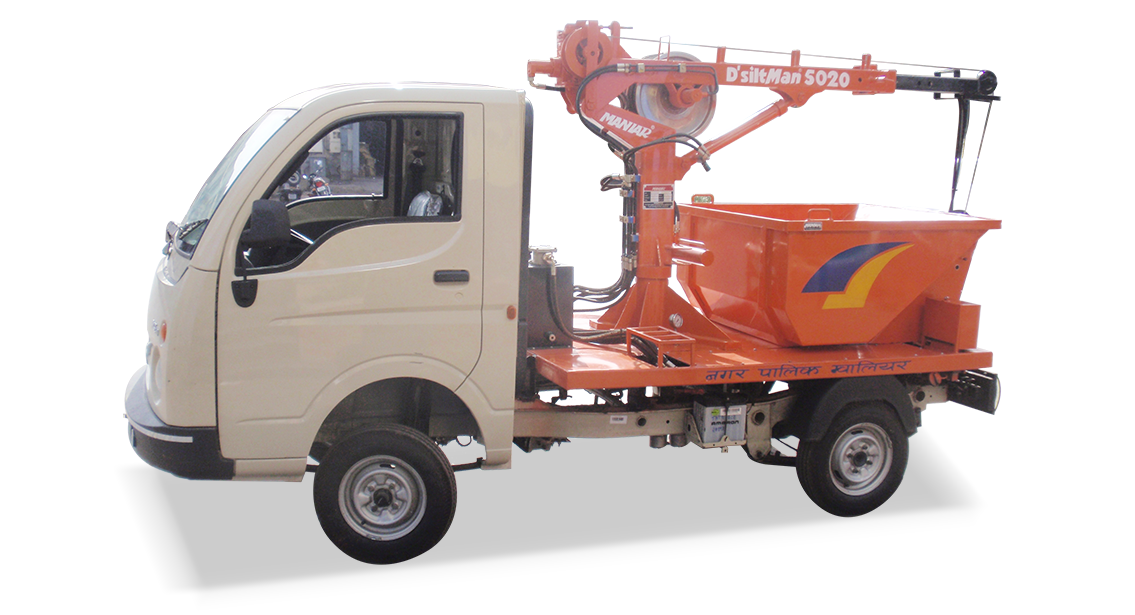

The DSM-3020 (4-Wheeler) is a hydraulic grab-bucket desilting machine mounted on a compact pickup/mini-truck chassis — standard road mobility with a larger hopper than the 3-wheeler, built for higher daily silt volumes at a substantially lower cost than a full vacuum truck.

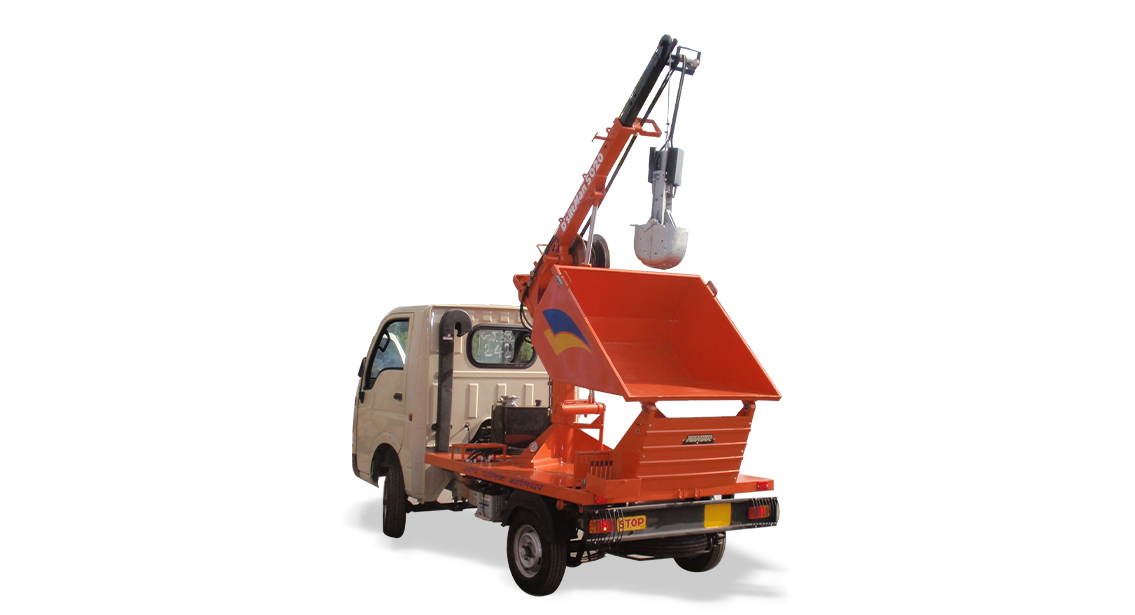

A four-bar linkage grab bucket, mounted on a telescopic hydraulic boom, lowers into the manhole or wet well. Moulded seamless steel jaws (minimum 10mm thick) close around the accumulated silt with up to 2.8 tons of grabbing force. A hydraulic winch — reduction gearbox, wire reel, and a 6mm-diameter wire rope rated to 22.5 kN breaking strength — raises the loaded bucket back to the surface, where the boom slews up to 90 degrees to either side and empties into the hydraulically operated hopper at a high dumping angle, straight into a container or compactor.
Enter your details below and we'll email you the complete specification sheet for this model, along with a photo so you know exactly which unit you're looking at.
0.5 cubic meters — larger than the 3-wheeler's 0.3 cum, which means fewer stops to dump per shift on higher-volume routes.
A compact pickup or mini-truck chassis, giving it standard road mobility rather than the tighter turning radius of the 3-wheeler variant.
They share the same grab-bucket mechanism, boom, and working depth. The 4-wheeler trades the 3-wheeler's tighter turning radius for a larger hopper, making it the better fit for higher-volume routes rather than narrow-access ones.
Up to 32 feet, using the telescopic boom and hydraulic winch.
