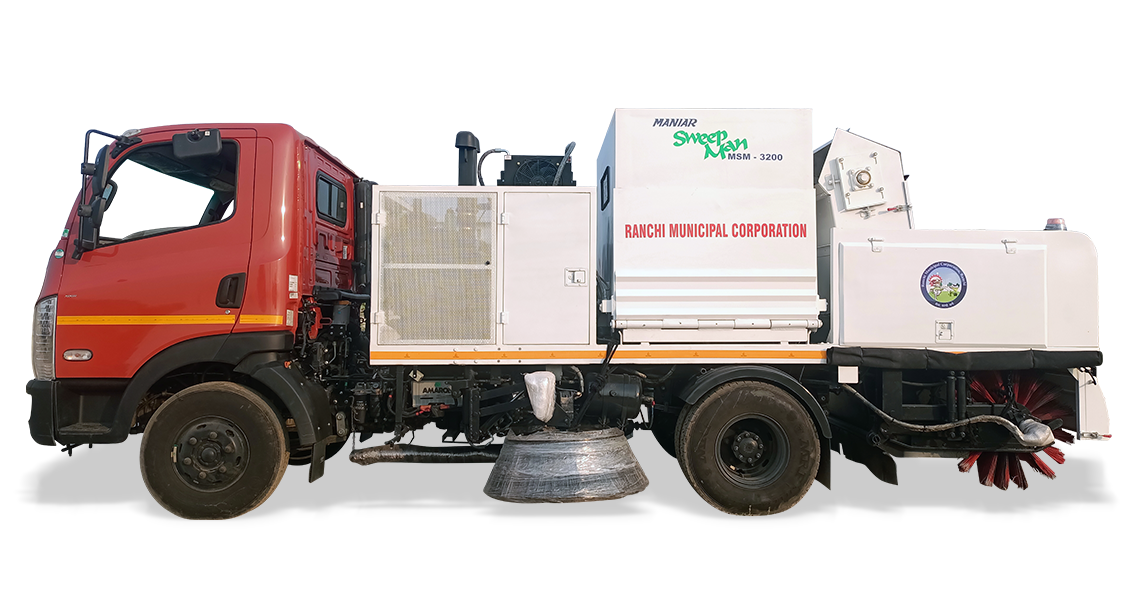

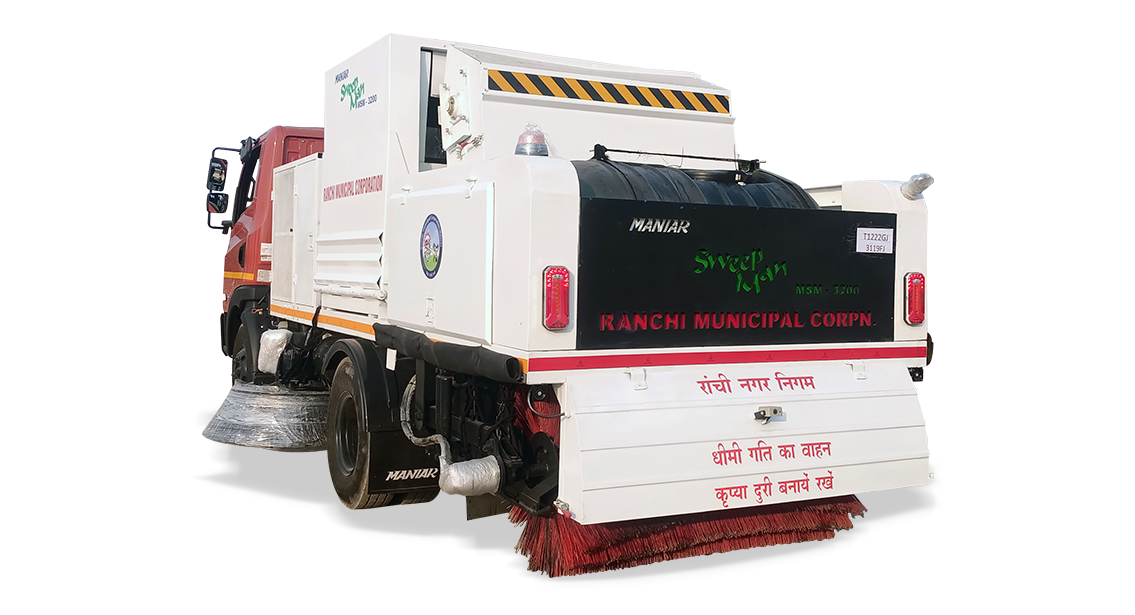

| MECHANICAL CONVEYOR TYPE ROAD SWEEPER |
| Vehicle |
Minimum 11 Tonnes GVW |
|
| Features |
|
The machine is able to sweep on uneven road condition |
| |
|
The machine is mechanical conveyor type hence eliminating the filter bags system in
case of vacuum sweeper. |
| |
|
The machine is capable to sweep in wet condition. |
| |
|

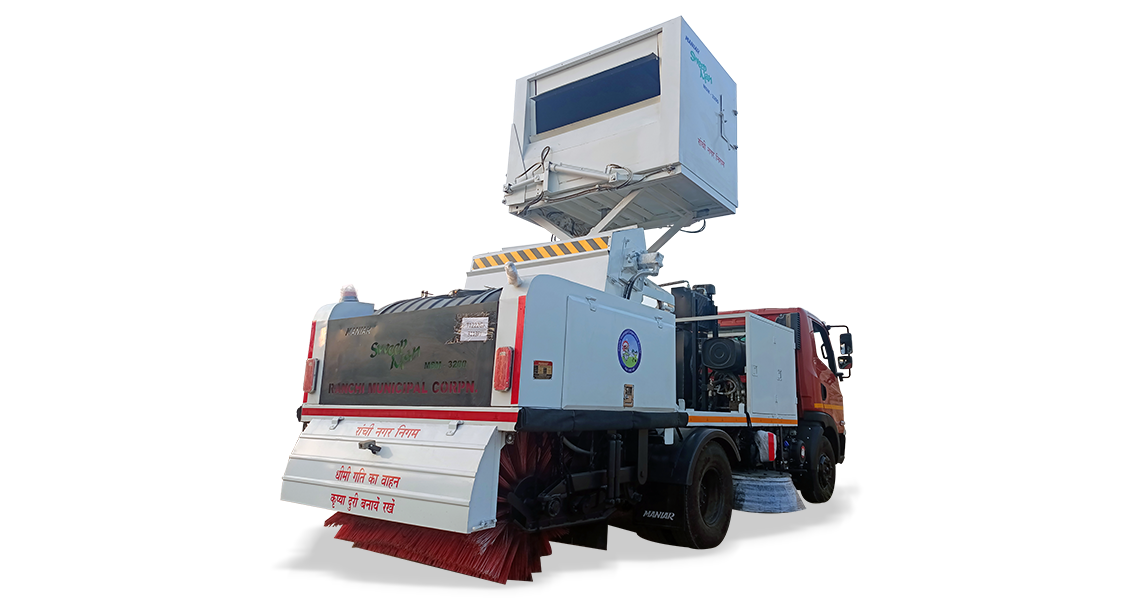

High rise scissor mechanism can dump debris into the tippers directly. |
| |
|
The machine have precise setting for side broom with respect to road condition. |
| |
|
Sweeping width should be minimum 2700mm. |
| |
|
The machine is capable to lift heavy deposited sand/dust on ground or at corner of
footpath/divider. |
| |
|
The machine have all controls in cabin and lever controls at rear for maintenance
purpose. |
| Sweeper Machine Specification |
| |
Sweeping Width |
1470mm |
| |
Sweeping Width with Side Broom |
2800mm |
| Main broom |
Diameter x length |
890mmx 1470mm |
| |
Lift control |
Hydraulic in cabin |
| |
Drive |
Hydraulic motor |
| |
Digging pressure |
Chains with springs |
| |
Mounting |
Trailing arms |
| |
Speed control |
Variable, hydraulically adjusted |
| Side broom |
Diameter |
915mm min |
| |
Drive |
Hydraulic motor/direct drive |
| |
Mounting |
Free floating/sideways oscillation |
| |
Digging pressure |
Hydraulic , in-cab adjustment |
| Conveyor |
Type |
Squeegee with 7 rubber flights |
| |
Width |
1470mm |
| |
Material |
Steel chain on urethane sprocket |
| |
Drive |
Hydraulic drive/direct drive |
| |
Speed control |
Variable, hydraulic adjusted |
| Debris hopper |
Capacity volumetric |
3.2 cum |
| |
Material |
3mm thk MS |
| |
Lift capacity |
3000 kg |
| |
Dump angle |
45-50 degree |
| |
Lifting method |
Scissor with single hydraulic cylinder |
| |
Max. dump height |
Min2900 mm |
| Auxiliary engine sweeper |
Make |
Mahindra/ kirloskar or equivalent |
| |
Type |
Inline 4 cylinder |
| |
Horse power |
65 HP |
| |
Air filter |
Dry type, heavy duty with pre cleaner |
| Hydraulic system |
Pump |
Variable displacement open circuit piston pump with load sense |
| |
Tank |
180 liters min. |
| |
Tank fittings |
Suction filter, return line filter, oil level gauge etc |
| |
Cooler |
Externally mounted/ electric fan |
| |
Controls |
In-cab, electric with manual override |
| |
Safety |
Low hydraulic level shut down |
| Water system |
Capacity |
750 liters |
| |
Tank construction |
Polyethylene, removable |
| |
Pump |
11.0 LPM flow rate |
| |
Spray nozzle |
3 per each broom |
| |
Filter |
Y Type Suction Filter |
| |
Lights |
Working light per each broom |
| |
Camera |
3 Nos. Camera on both side Broom and Rear with LED Screen fitted in Cabin |
