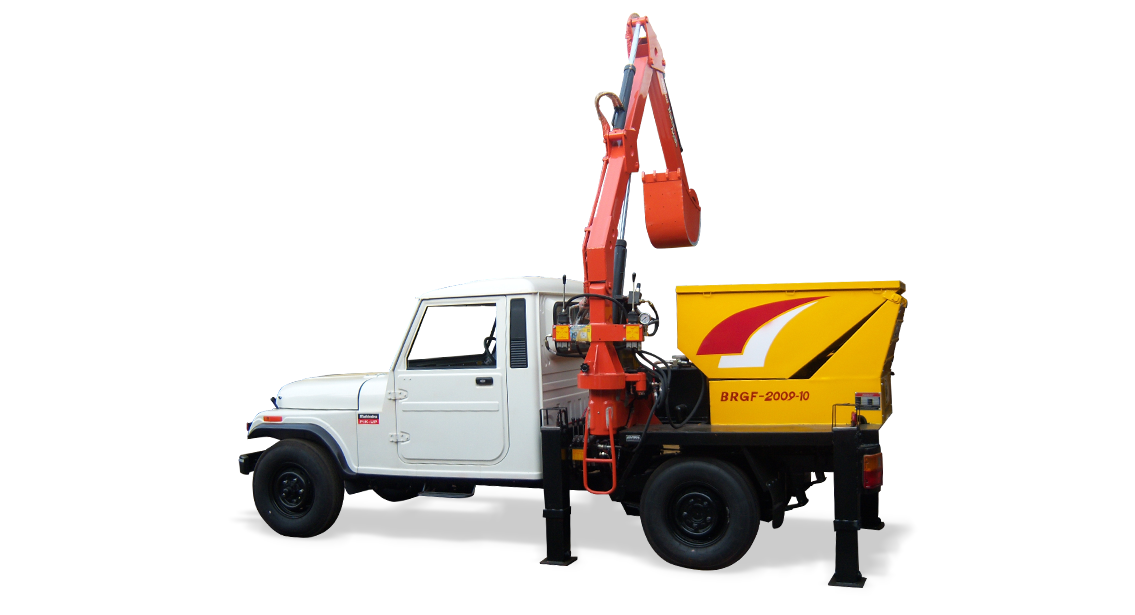

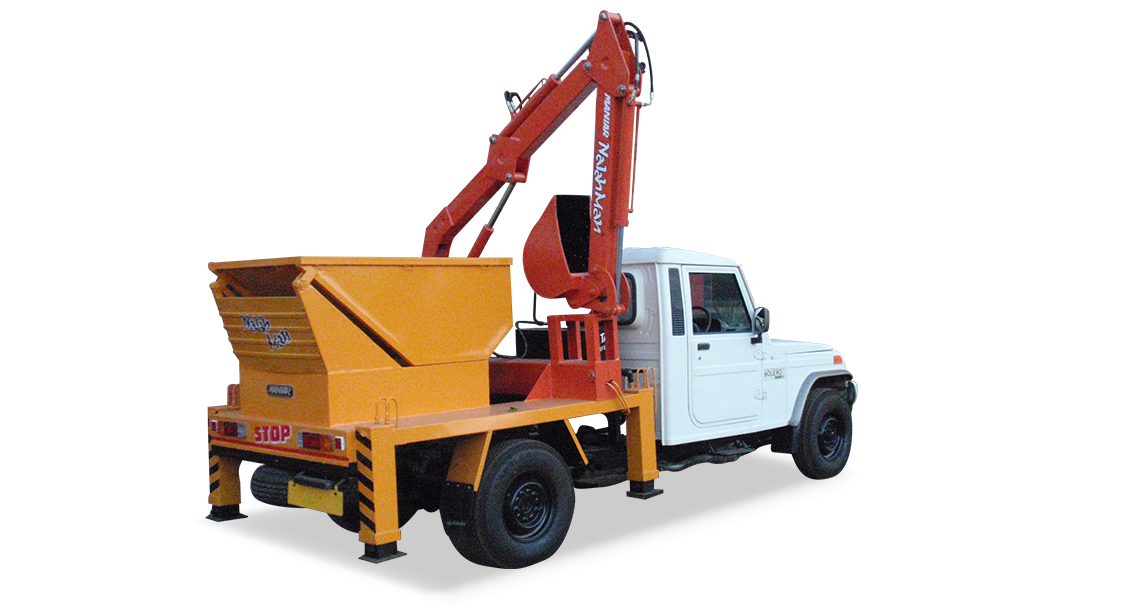

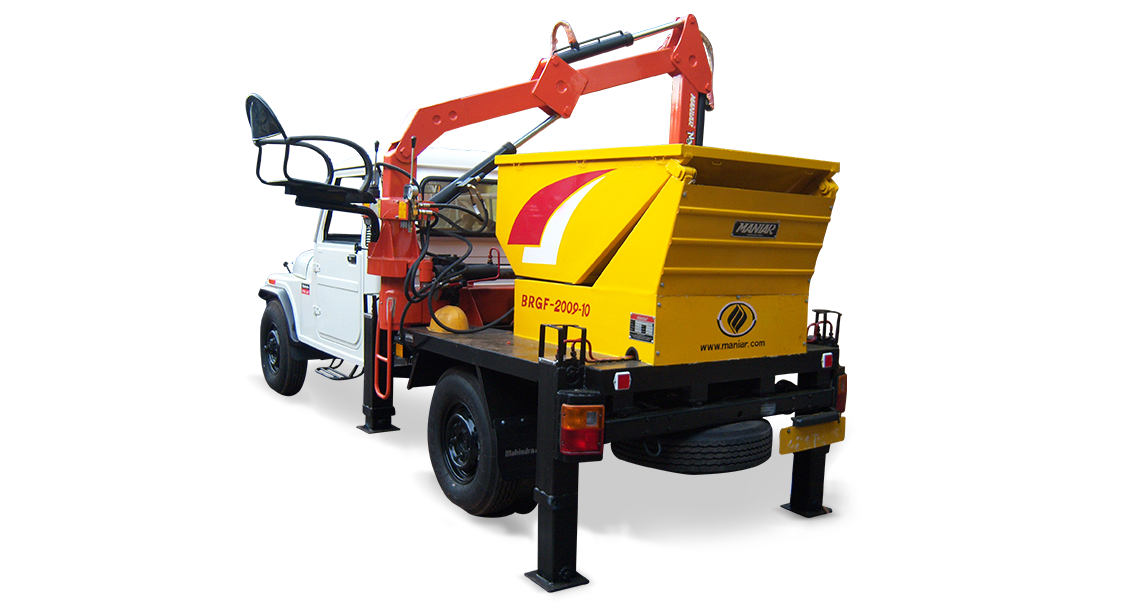

Ditch Cleaning MachineNM-Bolero (4-Wheeler)

The NM-Bolero draws hydraulic power from its own vehicle engine through a fitted PTO, so it doesn't need a separate tractor. The operator sits at the machine itself, directly beside the ditch, rather than offset at the center of a backhoe — making it far easier to judge reach and avoid damaging the ditch side walls. A telescopic lateral box section extends up to 800mm for better reach and visibility into the ditch, while the articulated boom swings through 90 degrees. The bucket scoops silt, mud, and sediment out of the ditch and empties it directly into the high-rise hydraulic tipping hopper, eliminating the need to re-handle silt dumped on the ground. Once full, the hopper tips to a dumping height of about 1.5m to empty at the disposal site.

The NM-Bolero ships with the standard ditch bucket, and can be quick-attached with a 4-jaw grab bucket on the same boom for a different kind of job:

• Ditch Bucket (standard) — a 0.05 cum (50 kg), 300mm-wide scoop bucket built to lift silt, mud, and sediment out of a narrow ditch without disturbing the side walls
• 4-Jaw Grab Bucket (optional) — a wide clamshell-style bucket with four jaws instead of a fixed scoop, rated to the same lifting capacity as the ditch bucket. Its open-jaw design suits picking up loose, irregular material like roadside litter and garbage, or waste at a landfill site, rather than digging into compacted silt

Swapping between the two is a quick-attach change on the same boom — no other modification needed.
