Compact articulating boom for lifting into tight, obstructed spaces.
View Details →
The AT-2300 is a 23m working height articulating telescopic boom lift on a 7 ton GVW (min.) truck chassis with a 3800mm wheelbase, stepping up to a double-pantograph boom design for a 10m outreach and taller reach than Maniar's mid-range models.
Page last updated: September 14, 2026
An articulating telescopic boom combines two boom actions in one unit: a lower boom section that articulates (folds) at a jointed pivot, letting the platform reach up and over obstacles the way a knuckle-boom lift does, and an upper section that telescopes — extends in a straight line — for additional reach and height beyond what the articulating joint alone could deliver. On the AT-2300, that lower section is a double pantograph, and its sigma boom movement is enabled by a connecting rod, while the telescopic upper boom extends hydraulically on its first stage and by wire rope on the stages after that, riding on nylon pads with a trunnion-type hydraulic telescopic cylinder for smooth movement. That combination makes the AT-2300 more versatile than a boom that is purely articulating, which tops out at its joint's reach, or purely telescopic, which is limited to straight-line movement, on its own. Four hydraulically operated stabilizers level and anchor the truck chassis, and a worm-reduction slew bearing gives the platform 360-degree continuous rotation. The whole system is designed to EN280 standard, with a 3kV insulated bucket available as an option for electrical maintenance work.
The AT-2300 reaches a 23m working height with a 21m platform floor height and 10m of outreach, rated for a 200kg safe load in the cage. It's built on a 7 ton GVW (min.) truck chassis with a 3800mm wheelbase, with continuous 360-degree slewing and four hydraulic stabilizers for setup on uneven ground. Optional 230V AC power, a water line, and an airline can be routed to the cage for jobs that need power or utilities at height.
Enter your details below and we'll email you the complete specification sheet for this model, along with a photo so you know exactly which unit you're looking at.

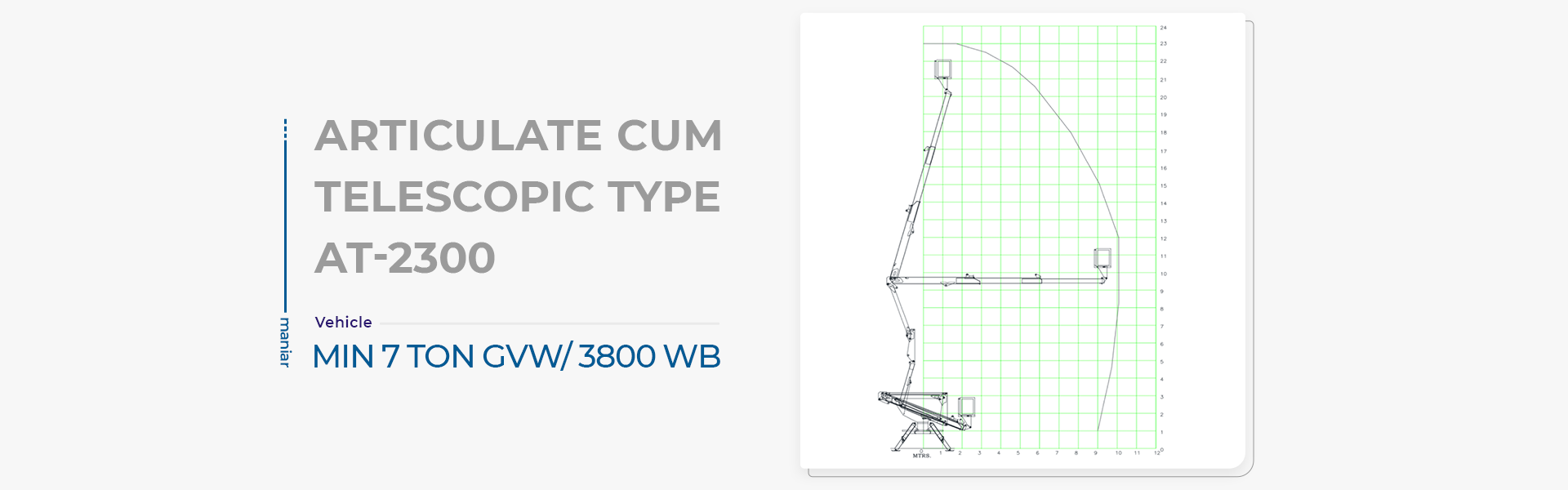

23m working height with 10m of outreach, on a 21m platform floor height.
A 7 ton GVW (minimum) truck chassis with a 3800mm wheelbase.
Yes — an optional 230V AC power supply, along with a water line and an airline, can be routed to the cage.
It uses a double-pantograph articulating section with sigma boom movement via a connecting rod, paired with a telescopic upper boom that extends hydraulically on its first stage and by wire rope beyond that — a design built for the added height and outreach of the 23m class.
