Compact articulating boom for lifting into tight, obstructed spaces.
View Details →

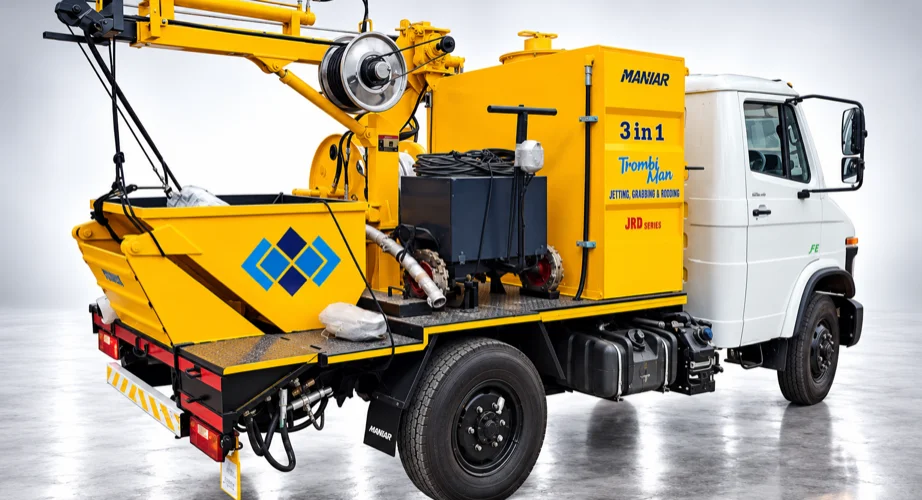

The TM-JRD2500 is a 2,500-liter 3-in-1 multi-function sewer cleaner mounted on a 7-ton chassis, combining high-pressure jetting, mechanical rodding, and grab-bucket desilting in a single unit — cutting down on the number of separate machines a crew needs to keep on hand.
Page last updated: September 9, 2026
Jetting: a 137 LPM / 140 bar triplex plunger pump, driven by a full-torque split-shaft PTO, forces water through a 3/4" x 60m hose and a self-propelled nozzle that pulls itself forward through the line, breaking up blockages and flushing debris out ahead of it.
Rodding: a trolley-mounted rodding machine screws flexible steel rods end to end and guides them into the line, then pushes the rod forward and pulls it back to break up the clog mechanically — effective where jetting alone can't clear a hard obstruction.
Desilting: a hydraulically extendable boom carries a four-bar linkage grab bucket that reaches into manholes and chambers to lift silt and debris, emptying it directly into a 0.5 cum hopper.
A trolley-mounted sewer rodding machine works alongside the jetting and desilting systems to clear blockages mechanically. Several flexible 7mm x 1m steel rods are screwed end to end and guided into the line, then pushed forward and pulled back to break up the clog.
Every 3-in-1 multi-function sewer cleaner ships standard with two nozzle types:
Additional nozzle types can be supplied to match specific jetting jobs, including penetrators, root cutters, descaling nozzles, and rotating nozzles.
Enter your details below and we'll email you the complete specification sheet for this model, along with a photo so you know exactly which unit you're looking at.
High-pressure jetting, mechanical rodding, and grab-bucket desilting, all on one 7-ton chassis.
Both options are available — a 5Hp air-cooled diesel engine or an AC electric motor, so you can choose based on power access at the job site.
A rod guide pipe, push/pull-out tool, pick-up tools in 1.5" and 2" sizes, cork screws (25/40/50mm), and a bar turning handle, in addition to the 30 flexible 7mm x 1m cleaning rods supplied with the machine.
Up to 20 kg per lift, emptying into a 0.5 cum hopper, with a reach of up to 32 feet.
